# Field with Range of Values and predefined Units of Measurement

This field allows you to enter two values as range and selecting a predefined unit of measurement. Perfect to store dimensions or other ranges of values for products.

# Requirements

Craft CMS >= 4.0.0

# Installation

Open your terminal and go to your Craft project:

cd /path/to/project
composer require codemonauts/craft-unit-field
./craft install/plugin unitfield

# Plugin Settings

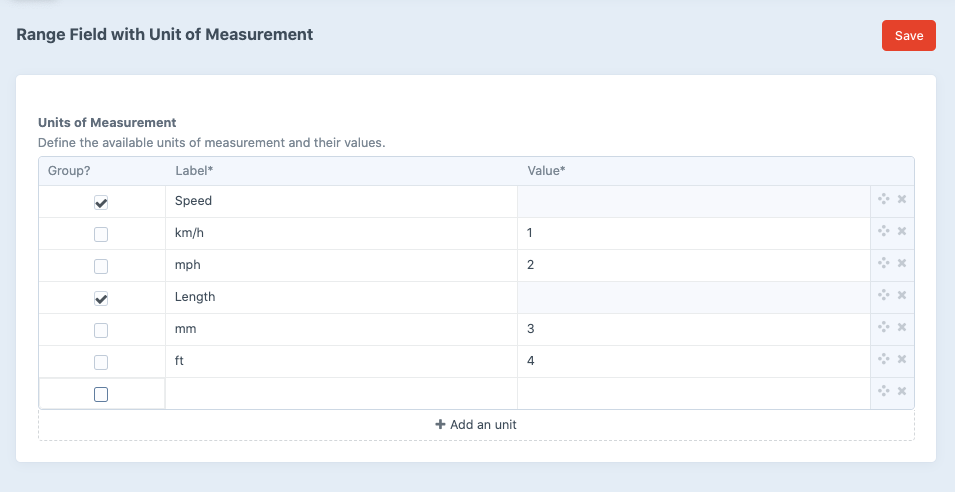

In the settings you can define all available units of measurement. You can also group units to easier select them later.

Plugin settings

# Field Settings

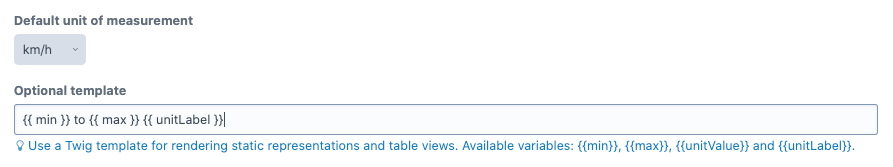

In every field you can set a default unit of measurement and a Twig template to render the table cells in the index of entries.

Field settings

# Input

The input field has two text inputs for the minimum and maximum value and a dropdown to choose the unit of measurement.

Input

# Usage in templates

In templates you can access the minimum and maximum values as well as the unit value and the corresponding label:

{{ entry.myField.min }} to {{ entry.myField.max }} {{ entry.myField.unitLabel }}

# Translation

All label can be translated. Use a translation file named unitfield.php in the language's translation directory.
